BOE 8inch Industrial lcd panel LCD Panel GT080S0M-N12 800*600pixels 125PPI 16.7M color 250 cd/m² 3.3V 50pin

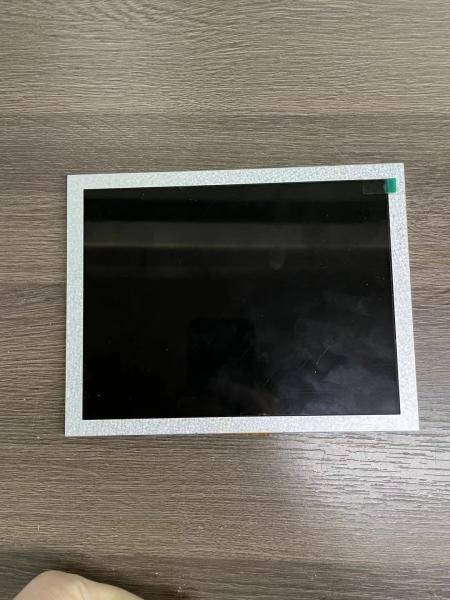

GT080S0M-N12-1QP1 is a 8.0" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Einklcd in the following: WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte , 2 in 1 FPC, DE/SYNC mode selectable. Based on its features, einklcd recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2022, Now this model is in production. We inputted this model's specification on Dec 5 2022 for the first time. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of GT080S0M-N12-1QP1. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
- Brand
- BOE
- Model P/N
- GT080S0M-N12-1QP1
- Diagonal Size
- 8.0"
- Panel Type
- a-Si TFT-LCD, LCM
- Resolution
- 800(RGB)×600, SVGA 125PPI
- Pixel Format
- RGB Vertical Stripe
- Active Area
- 162(W)×121.5(H) mm
- Bezel Opening
- 164.85(W)×124.24(H) mm
- Outline (mm)
- 183×141×3.65 (H×V×D)
- Treatment
- Antiglare
- Luminance
- 250 cd/m² (Typ.)
- Contrast Ratio
- 500 : 1 (Typ.) (TM)
- Viewing Angle
- 75/75/75/75 (Typ.)(CR≥10)
- Response
- 20 (Typ.)(Tr+Td) ms
- Good View at
- -
- Work Mode
- TN, Normally White, Transmissive
- Color Depth
- 262K/16.2M 50% NTSC
- Backlight
- 3S6P WLED , No Driver
- Mass
- -
- Used for
- Refresh Rate
- 60Hz
- Touchscreen
- Without
- Signal Type
- Parallel RGB (1 ch, 6/8-bit) , FPC 50 pins
- Voltage Supply
- 3.3/10/21/-7.78V (Typ.)(VDD/AVDD/VGH/VGL)
- Max. Ratings
- Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
-
